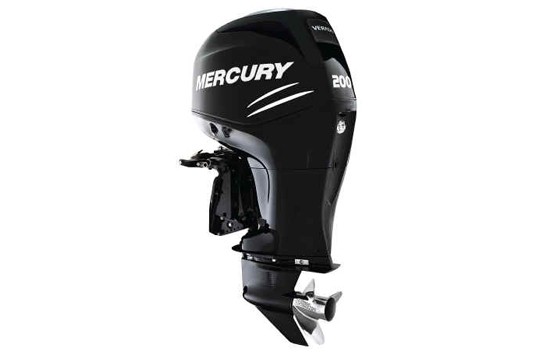

Propshaft Rated Horsepower ( HP / kW) : 200/ 147
Max RPM ( WOT) : 5800-6400
Cylinder/ Configuration : Straight 4, 16-valve direct acting double overhead cam ( DOHC)
Displacement ( CID/ cc) : 105.7/ 1732
Displacement Liter/ CID : 1.7/ 105.7
Bore & Stroke ( mm) : 82 x 82
Fuel Induction System : SmartCraft DTS electronic throttle, supercharged with charge air cooling and electronic boost pressure control
Fuel System : Computer controlled Sequential Multi-Port Electronic Fuel Injection ( EFI)
Fuel Requirements : Unleaded Regular 87 Octane Minimum ( R+ M/ 2)
Ignition System : SmartCraft PCM 07 Digital Inductive
Charging System : Fully regulated belt driven 70-amp ( 882 watt)
Starting : Electric ( Turn-key)
Exhaust System : Through Prop
Cooling System : Water cooled with thermostat & pressure control
Lubrication System : Integrated dry sump
Oil Requirement : NMMA Certified FCW SAE 25W-40
Oil Capacity - Liters ( l) : 6
Engine Management System : SmartCraft PCM 07
Engine Control System : SmartCraft Digital Throttle & Shift ( DTS)
Engine Protection System : SmartCraft Engine Guardian
Gear Shift : SmartCraft DTS, F-N-R
Gear Ratio : 2.08: 1
Shaft Length ( inches) : 25
Shaft Length ( mm) : 635
Counter Rotation : Available on 25 " ( CXL) models
Trim System : Power trim & tilt with SmartCraft programmable tilt
Maximum Tilt Range : 73° ( -5° to 68° )
Maximum Trim Range : 20° ( -5° to 15° )
Steering : Hydraulic or electro-hydraulic power steering available using standard Mercury universal cylinder
SmartCraft : Compatible
Weight ( lbs / kg) : 510/ 231
Negara Asal: Amerika Serikat
